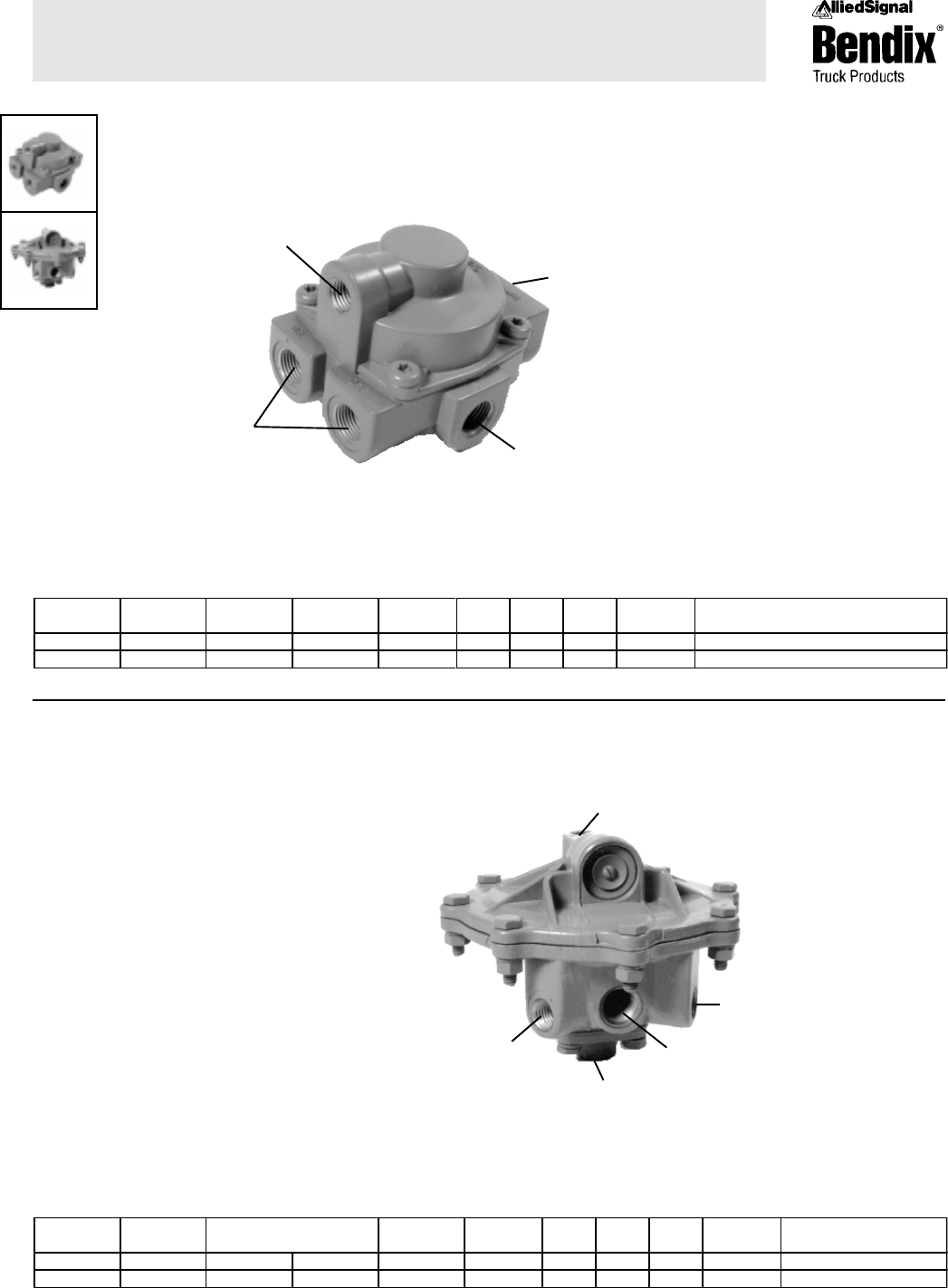

Relay Valves

Midland/Berg

12345X, 12346X

2 & 4 Port Delivery

Used to apply and release service brakes

on tractor or trailer.

12345X

Shown

Midland

KN28010X, KN28011X

3 Port Delivery

Used to apply and release service brakes

on tractor or trailer.

KN28010X

Shown

Part No.

Supply

Ports

Delivery

Ports

Control

Ports

Crack

Pressure

Wght.

Core

Class

Core

Grp.

Minor

Maint. Kit

Comments

12345X 1 - 3/4" PT 4 - 3/4" PT 1 - 1/4" PT N/A 2 lbs. VL W2 VK1019B

12346X 1 - 1/2" PT 2 - 3/8" PT 1 - 1/4" PT N/A 2 lbs. VL W2 VK1019B

Part No.

Supply

Ports

Delivery Ports

Control

Ports

Crack

Pressure

Wght.

Core

Class

Core

Grp.

Minor

Maint. Kit

Comments

KN28010X 1 - 3/8" PT 2 - 1/4" PT 1 - 3/8" PT 1 - 1/4" PT N/A 3 lbs. VE V4 VK1013M

KN28011X 1 - 3/8" PT 3 - 3/8" PT -- 1 - 1/4" PT N/A 3 lbs. VE V4 VK1013M

Supply

Delivery

Control

Delivery

Supply

Control
