BRAKE SYSTEMS DIAGNOSTIC GUIDE

POTENTIAL CONDITION/CAUSE ACTION (SERVICE MANUAL SECTION)

Dragging brakes See DRAGGING BRAKES

 Check brake adjustment

Grabbing or pulling brakes:

• Grease, oil or dirt on linings  Replace linings (5)

• Glazed linings  Deglaze linings or replace (5)

• Cam bracket seal failure  Replace seals (5)

• Brake linings not a balanced set, different codes, or lining brand  Replace linings (5)

• Loose or broken linings  Replace linings (5)

• Brake drum out-of-round  Replace drum (3,6)

• Defective brake drum  Replace drum (3,6)

• Camshaft binding at one or more wheels  Clean and lubricate (2,3)

• Defective slack adjuster  Replace slack adjuster (3,6)

• Uneven brake adjustment (side-to-side)  Adjust brakes (2)

• Broken or bent part(s)  Replace part(s)(6)

• Loose spider or drum mounting bolts  Retorque bolts (6)

• Different air chamber size or slack adjuster length (side-to-side)  Use same size air chamber and slack adjuster length

on all brakes

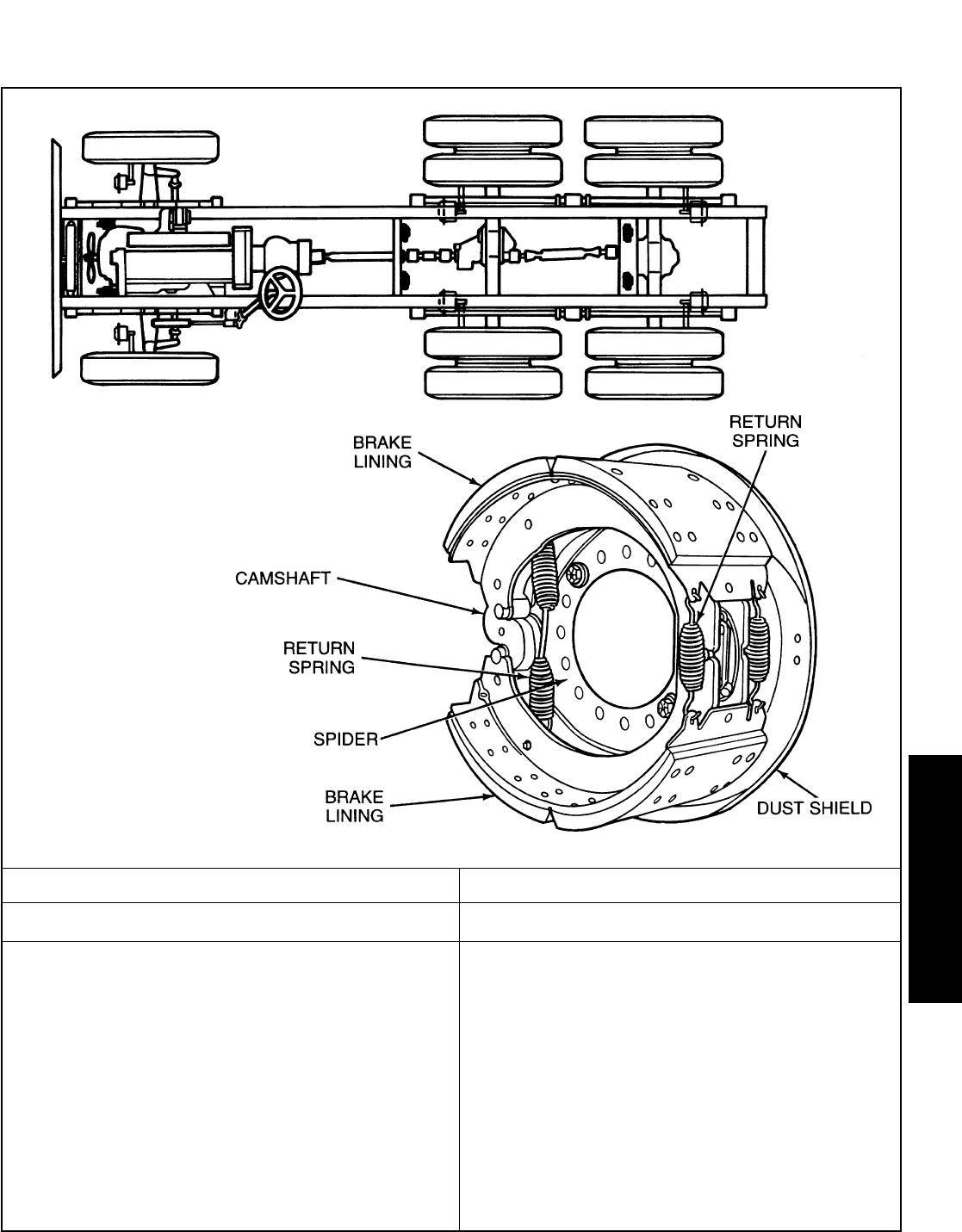

VEHICLE PULLS/

CRACKED DRUMS
