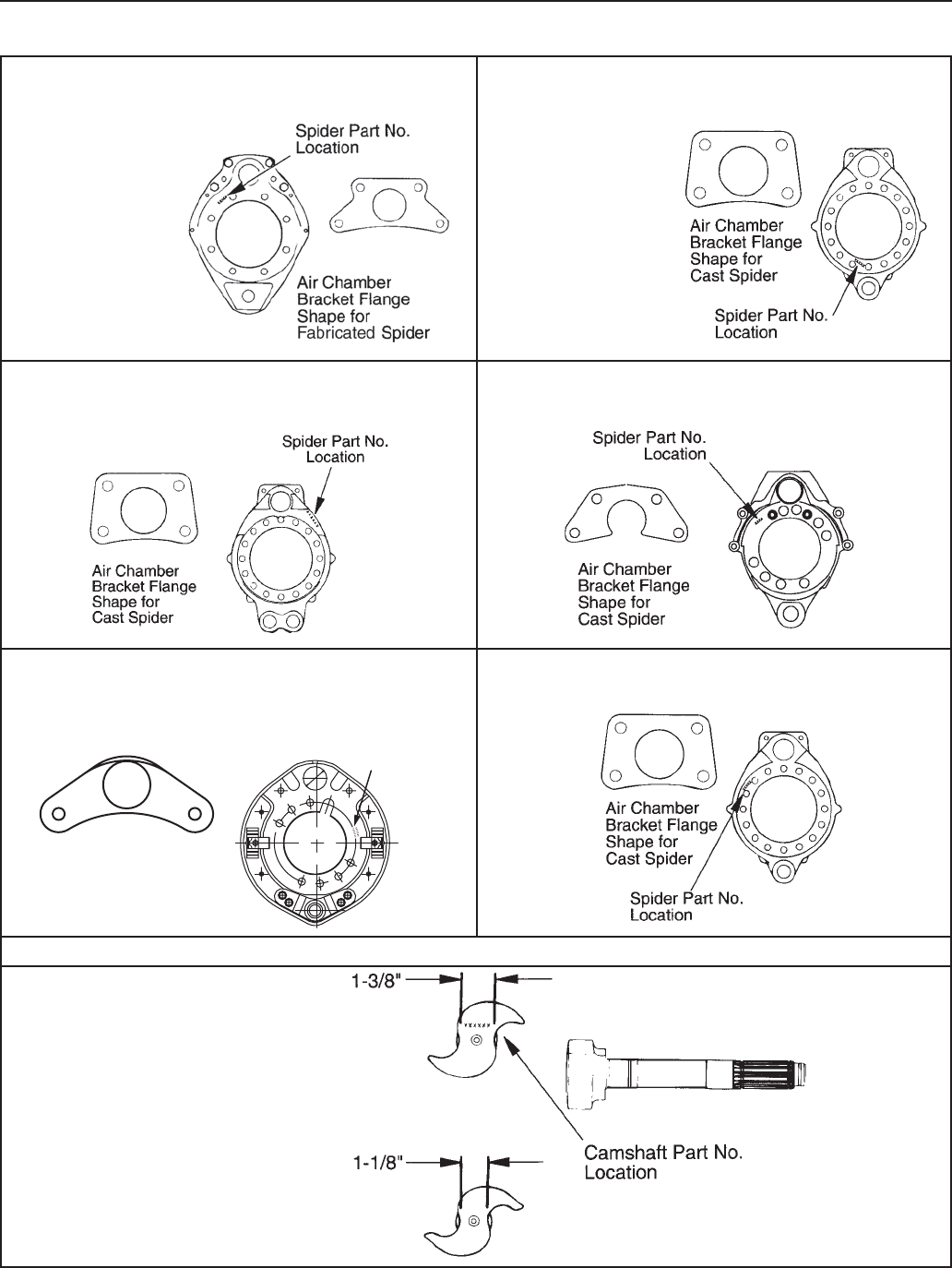

Nomenclature

Brake Spiders

Lightweight Fabricated Spider

Single Ancho Pin ES-165-XL

X = 5, 6, 7, or 8 in.

brake width

Camshafts

Cast Spider

Single Anchor Pin ES-165-XD

X = 5, 6, 7, or 8 in.

brake width

Cast Spider Double Anchor Pin

ES-165-7H, ES-165-7M, ES-165-6H and ES-165-10H

Reduced Envelope Steer Brake Cast Spider

Single Anchor Pin ES-150-4D or ES-150-6D

Stamped Spider ES-150-4L Reduced Envelope Drive Brake Cast Spider

Single Anchor Pin ES-150-8D

Cam Head for EB-180

Brakes

Cam Head for ES-165 and

ES-150 Reduced Envelope

Brakes

Spider Part No.

Location

Air Chamber Brake

Flange shape for

ES/EB-150-4L
