Steer Axle Installations

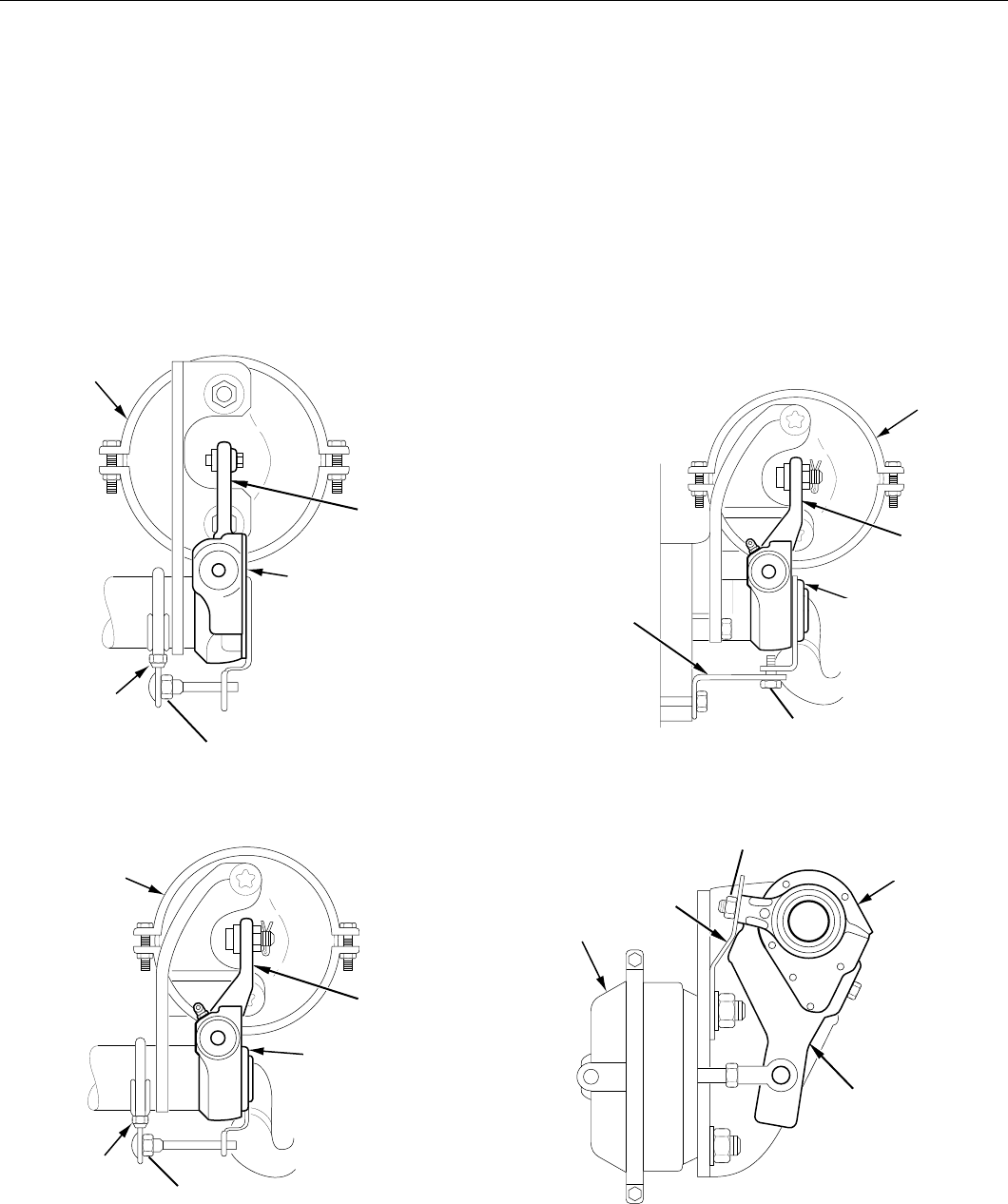

Figures 2, 3, 4 and 5 show typical brackets for self adjusting brake

adjuster installations on steer axles:

• Straight brake adjuster using a clamp-type bracket

(See Figure 2.)

• Offset brake adjuster using clamp-type bracket

(See Figure 3.)

• Offset brake adjuster using bolt-on type bracket

(See Figure 4.)

• Disc brake type installation (See Figure 5.)

Refer to pages 9, 10 and 11 for detailed installation procedures.

Figure 4 Offset (Bolt-On Type Bracket) InstallationFigure 2 Straight (Clamp-Type Bracket) Installation

Figure 5 Disc Brake Type Installation

Figure 3 Offset (Clamp-Type Bracket) Installation

AIR

CHAMBER

CLAMP-TYPE

BRACKET

AUTOMATIC SLACK

ADJUSTER

OFFSET

ARM

AIR

CHAMBER

AUTOMATIC SLACK

ADJUSTER

BOLT-ON

BRACKET

STRAIGHT

ARM

Typical Applications

CLAMP-TYPE

BRACKET

AIR

CHAMBER

STRAIGHT

ARM

AUTOMATIC SLACK

ADJUSTER

AIR

CHAMBER

OFFSET

ARM

AUTOMATIC SLACK

ADJUSTER

BOLT-ON

BRACKET

AX09

SELF ADJUSTING

BRAKE ADJUSTER

SELF ADJUSTING

BRAKE ADJUSTER

SELF ADJUSTING

BRAKE ADJUSTER

SELF ADJUSTING

BRAKE ADJUSTER

TORQUE TO

20-30 FT. LBS.

TORQUE TO

40-50 FT. LBS.

TORQUE TO

20-30 FT. LBS.

TORQUE TO

40-50 FT. LBS.

TORQUE TO

15-20 FT. LBS.

TORQUE TO

8-12 FT. LBS.
